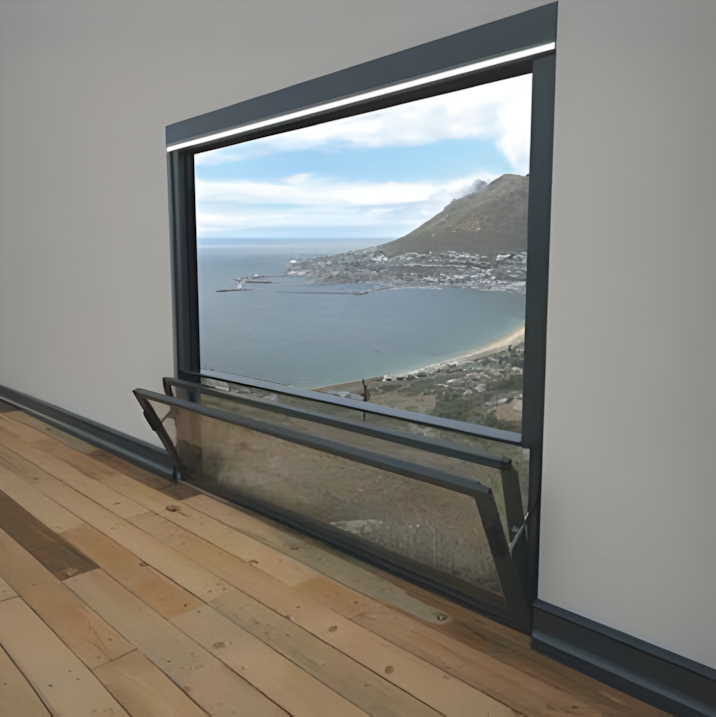

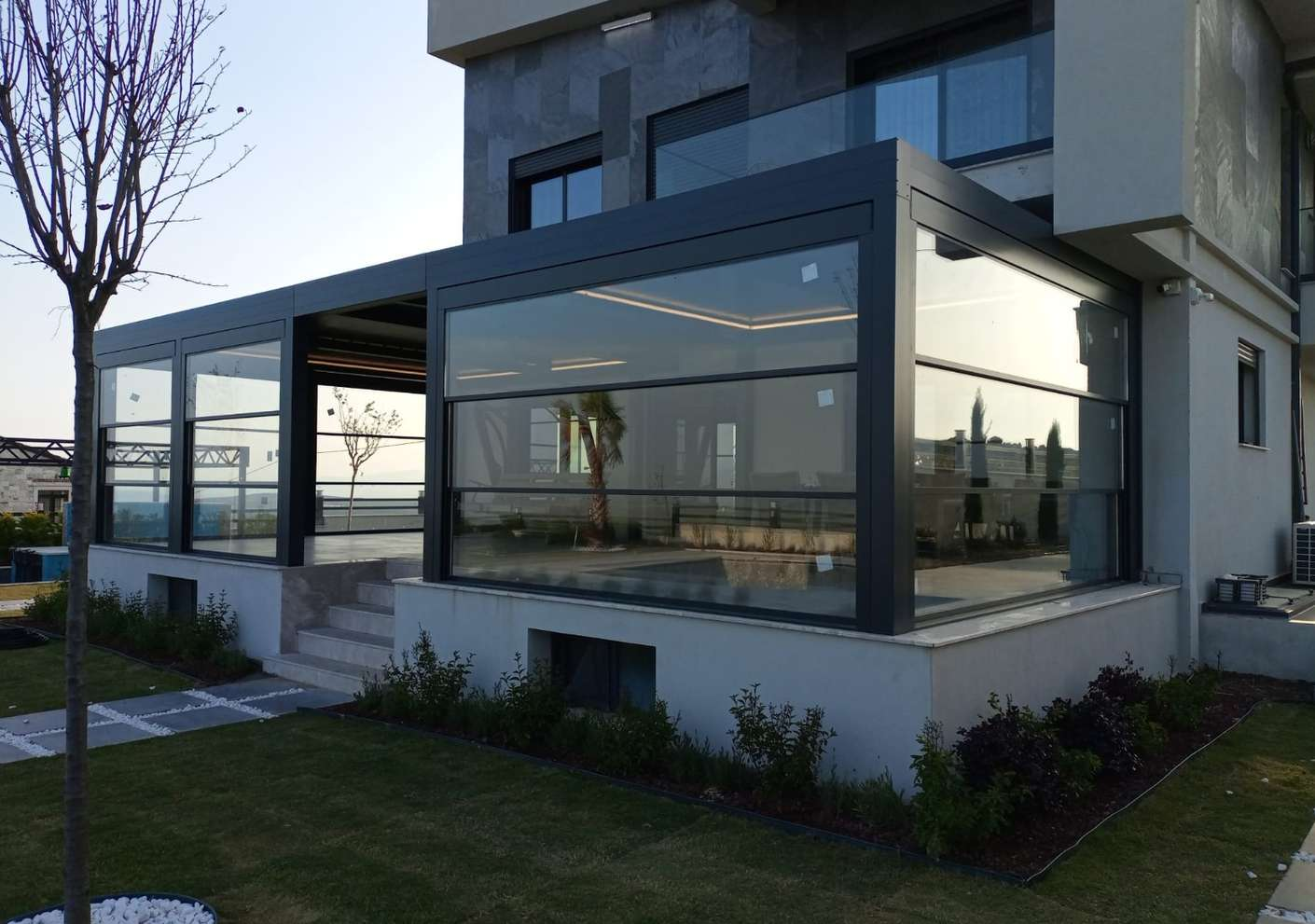

AluView - Guillotine Glass (Custom Size Production)

1. General Features

• The system will be measured, manufactured, and installed by ALUTEMA ALUMINUM in accordance with the specifications.

• The system operates as an electric, movable, and remote-controlled railing system.

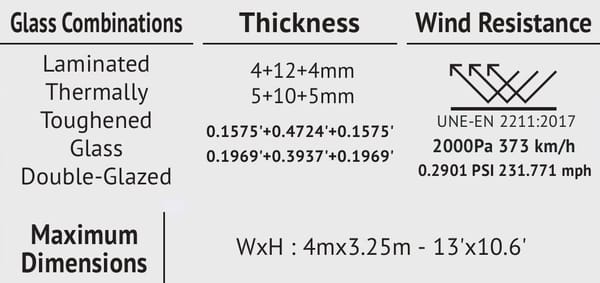

2. Glass Features

• 4+12+4 double-sided tempered transparent insulating glass is used as standard.

• Colored glass can be applied optionally upon request.

• The interlocking mechanism between the glass panels provides excellent insulation against dust, heat, sound, and water.

• Vertical brush seals and rubber gaskets at the base and top ensure comfortable insulation against external factors.

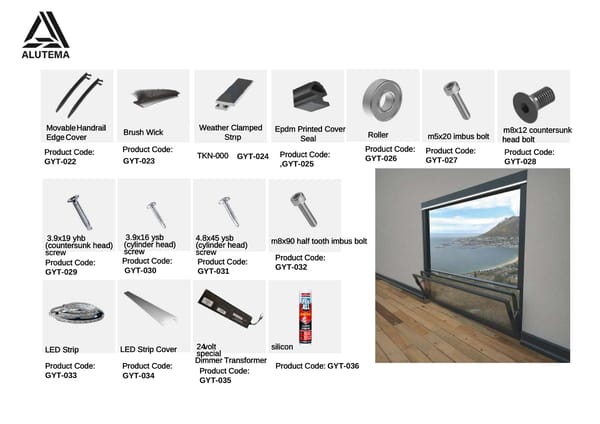

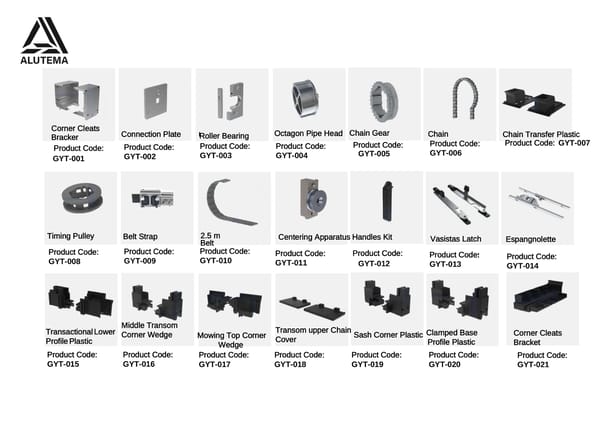

3. System Components

• Aluminum frames and casings are used, along with stainless steel pulleys and holders.

• The glass panels are carried by a 6 mm chain and Somfy motor:

  • Motor options include 120 NW, 140 NW, and 190 kg load capacity.

• The motor features an automatic stop function and operates flawlessly based on preset start and stop points.

• The motor is self-receiving and ensures safe operation.

4. Functionality

• The system can be opened and closed remotely, both fully and partially, allowing for adjustable openings as needed.

• This functionality is available for both downward opening and upward closing motions.

• The system allows for staggered opening of the glass panels, enabling practical and easy temperature control inside the space without opening all windows.

• The system is designed to operate quietly and is manufactured with high-quality insulation.

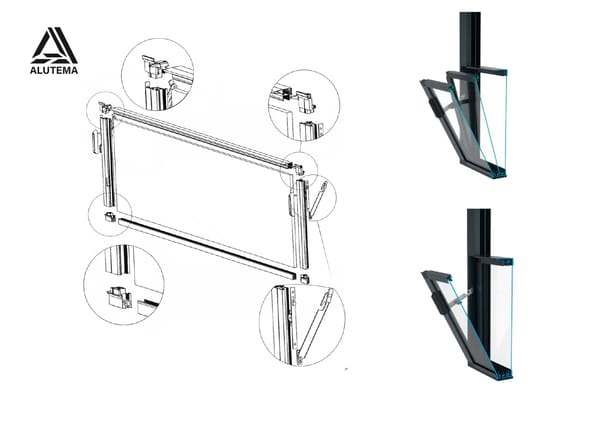

5. Installation Details

• The system is installed with each module moving vertically, using two or three glass panels per module.

• After assembling the aluminum casings and corner connections, the glass guide rails are installed for each glass panel.

• Once the fixed glass is placed, the casing cover is installed.

• The motor assembly is mounted on the aluminum chassis, and the chain is connected to the movable glass panel.

• The system is calibrated using the remote control to ensure safe and precise operation.

6. Additional Features

• When fully closed, the system integrates seamlessly with the railing, providing a unified appearance.

• The system ensures comfortable insulation and ease of use while maintaining a high level of durability and functionality.

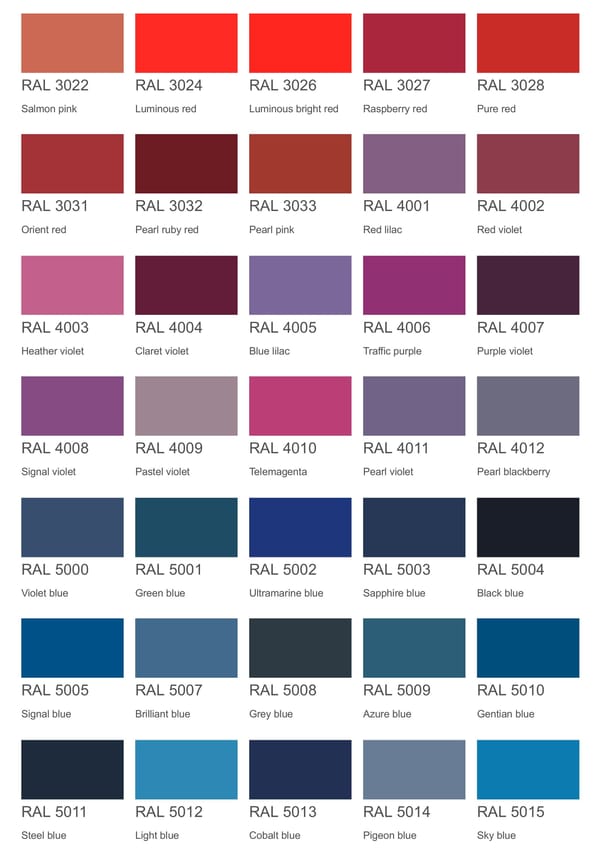

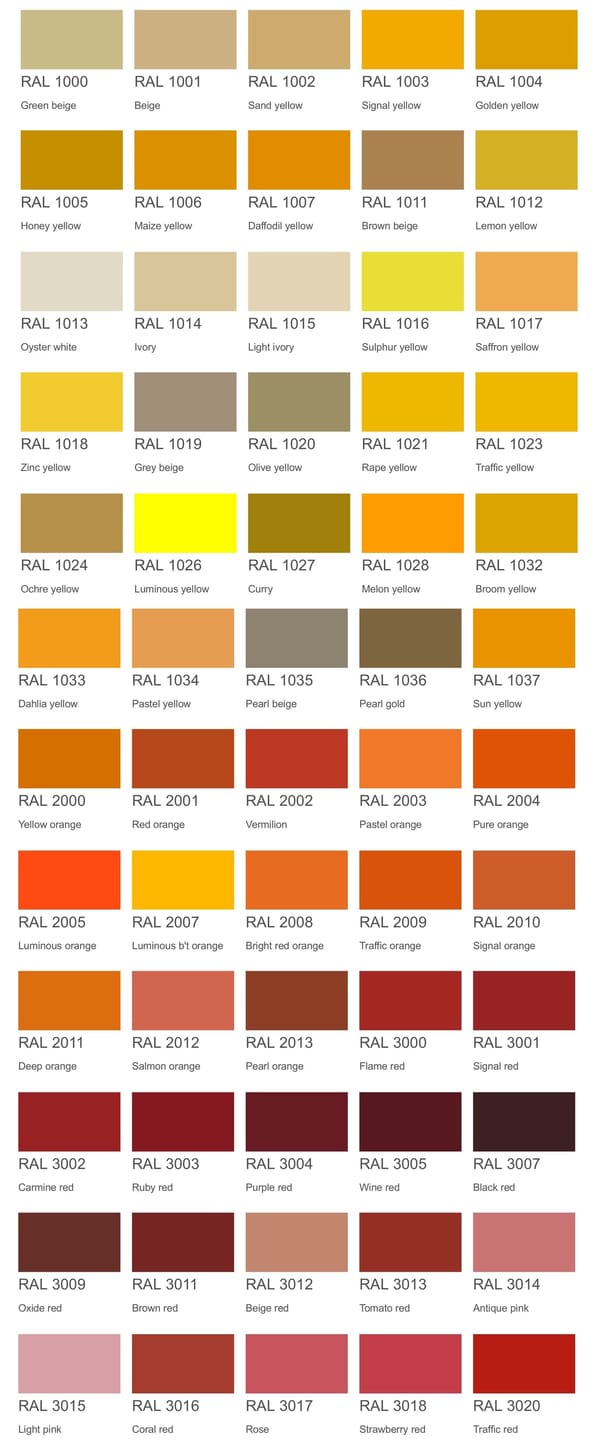

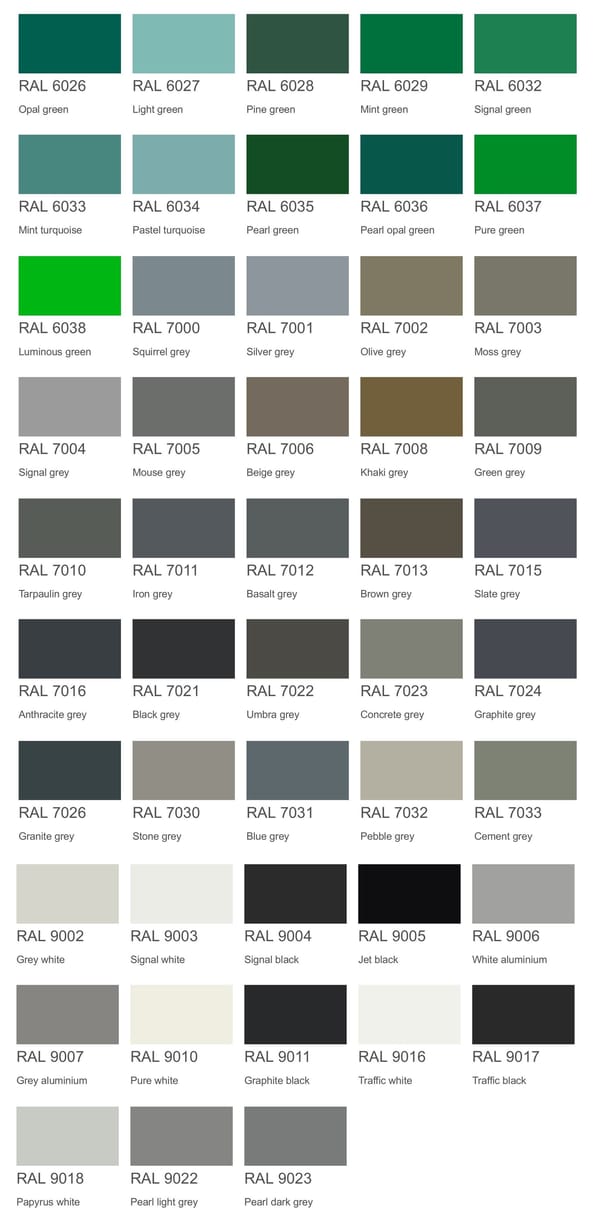

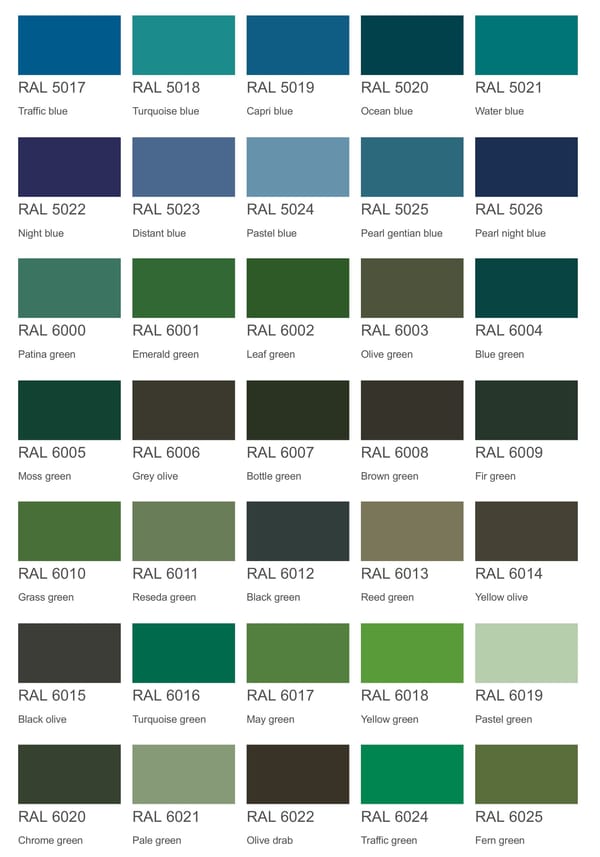

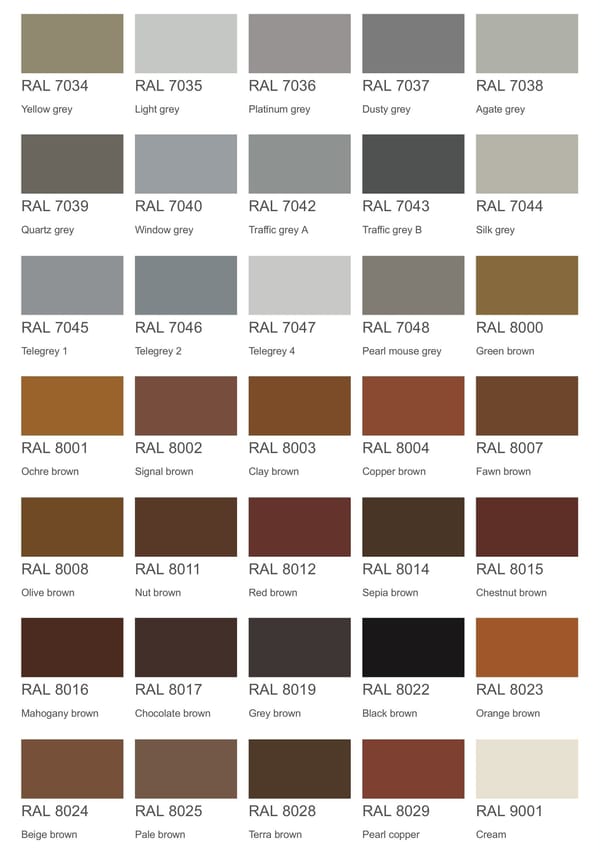

Please contact us for available RAL Colors & Indicate which option you prefer, Matt or Texture.

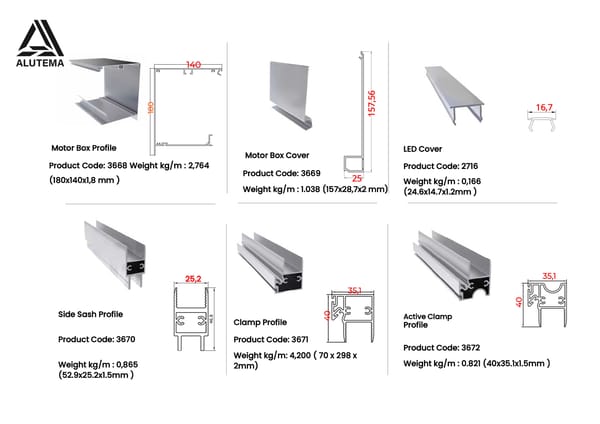

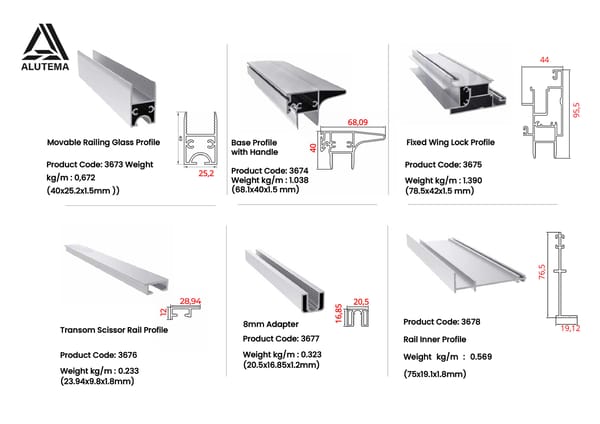

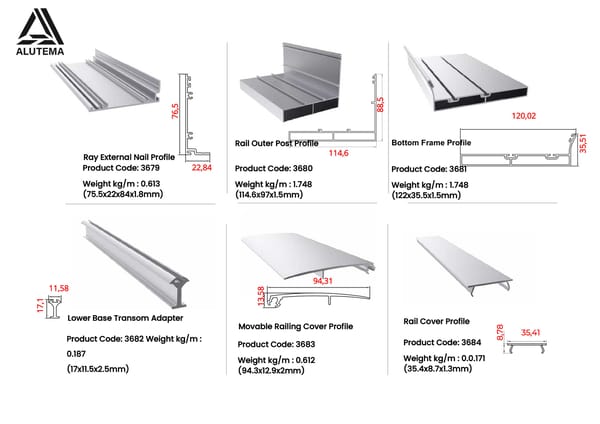

1. Aluminum Profiles:

• High-strength extruded aluminum (6063 T5/T6).

• Corrosion-resistant with electrostatic powder coating.

• Color options: Standard and custom colors (RAL catalog).

2. Glass Panels:

• Tempered or laminated glass options.

• Thickness: 8mm - 12mm (customizable).

• Provides high durability and safety.

3. Seals and Gaskets:

• High-density EPDM rubber gaskets.

• Resistant to UV rays and extreme weather conditions.

4. Lighting:

• LED lighting system, concealed installation, energy-efficient.

• Long-lasting, available in white and RGB light options.

5. Motor and Mechanism:

• Operable with a remote control.

• Quiet motor technology.

• Vertical motion capability.

6. Surface Protection:

• Electrostatic powder coating enhances corrosion resistance.

• Durable against temperature fluctuations.

Features and Areas of Use

Guillotine wipeable glass systems are a system consisting of vertically movable glass panels, designed specifically for ease of cleaning and maintenance. These systems are generally used in areas such as balconies, terraces, winter gardens, restaurants, and cafes. The fact that guillotine glass systems are wipeable allows both the interior and exterior surfaces of the glass to be easily cleaned.

Features:

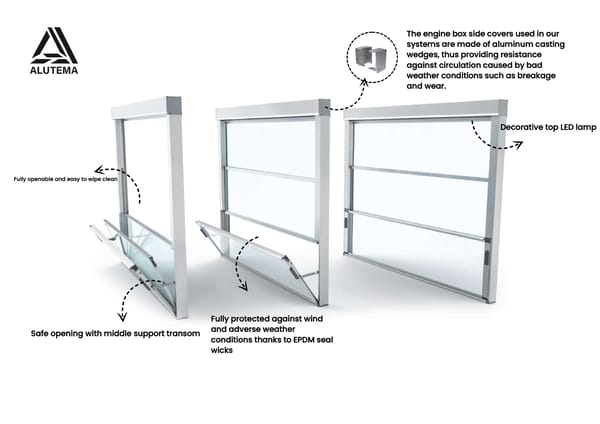

1. Vertical Movement: Glass panels move vertically and slide open and closed on top of each other. This provides easy access to glass surfaces.

2. Wipeability: Easy access to the inner and outer glass panels facilitates cleaning. When the panels are fully opened, both surfaces can be easily wiped.

3. Material: Made of tempered or laminated glass. Frame and rail systems are usually made of anodized or stainless steel.

4. Automation: Can be powered by electric motors or integrated into smart home systems. Manual models can also be found, but motorized systems are more common.

5. Insulation: Provides heat, sound, and water insulation. The wicks and frame system between the glass panels support this insulation.

6. Security: Additional security measures such as safety locks and child locks may be available. The use of tempered glass also increases security.

Areas of Use:

• In homes: Used in balconies, terraces, verandas, and winter gardens.

• Restaurants and Cafes: Used to turn outdoor seating areas into enclosed areas and open them when necessary.

• Office and Commercial Areas: Ideal for areas integrated with natural light.

• Hotels and Resorts: Ideal for allowing users to use outdoor areas and closing them according to weather conditions.

Guillotine wipeable glass systems offer superior solutions in terms of both functionality and aesthetics when the right materials and designs are used. These systems are resistant to various weather conditions and allow users to use open spaces more efficiently and comfortably. They offer long-lasting and hygienic use thanks to their ease of cleaning and maintenance.

• Comprehensive Warranty: Our products come with an extensive warranty, ensuring long-term durability and peace of mind.

• Warranty - 10 years on the structure, 2 years on electrical parts (motors, sensors, etc)

• Strict Quality Control: Each product undergoes rigorous testing and quality checks before shipment to ensure compliance with international standards.
