AluWind (Custom Size Production)
Wind Breaker System
Wind Breaker System
Designed with a simple combination and glass design, it is ideal for outdoor use. With the option of manual or motorized vertical height adjustment, it offers a comfortable and cozy environment for verandas, cafes, hotels, and restaurants.
The AluWind Wind Breaker Glass System protects against external weather conditions, wind, dust, theft, and more. Additionally, it is an excellent solution for dividing spaces in areas.
Featuring a minimalist aesthetic, the system boasts a sleek and contemporary design with slim and elegant aluminum profiles that maximize the glass surface. The glass windbreak provides a comfortable space for users without isolating them from the outdoors.

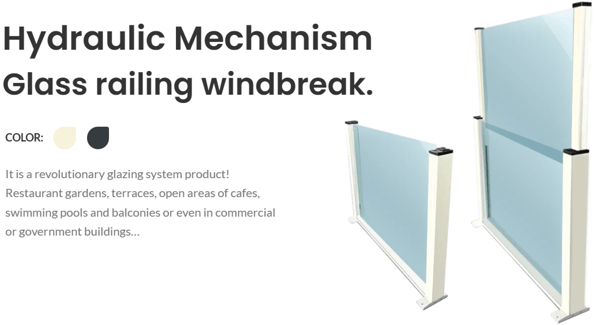

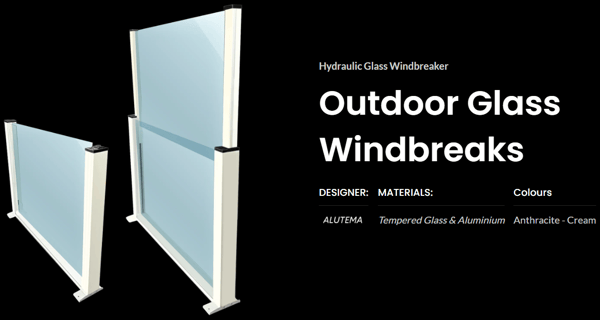

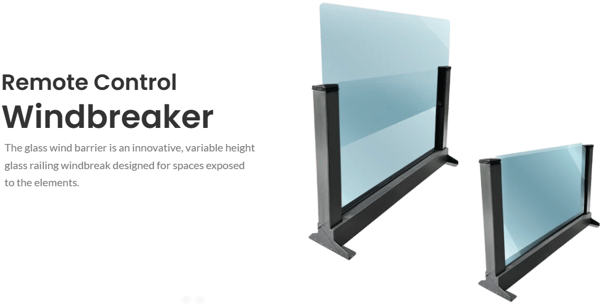

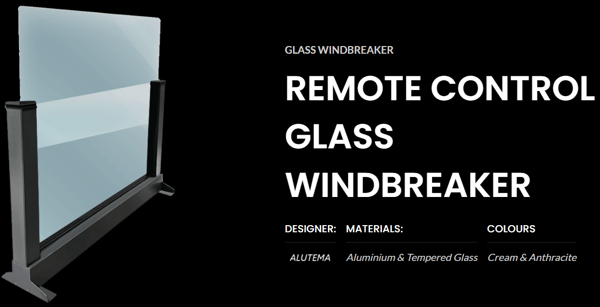

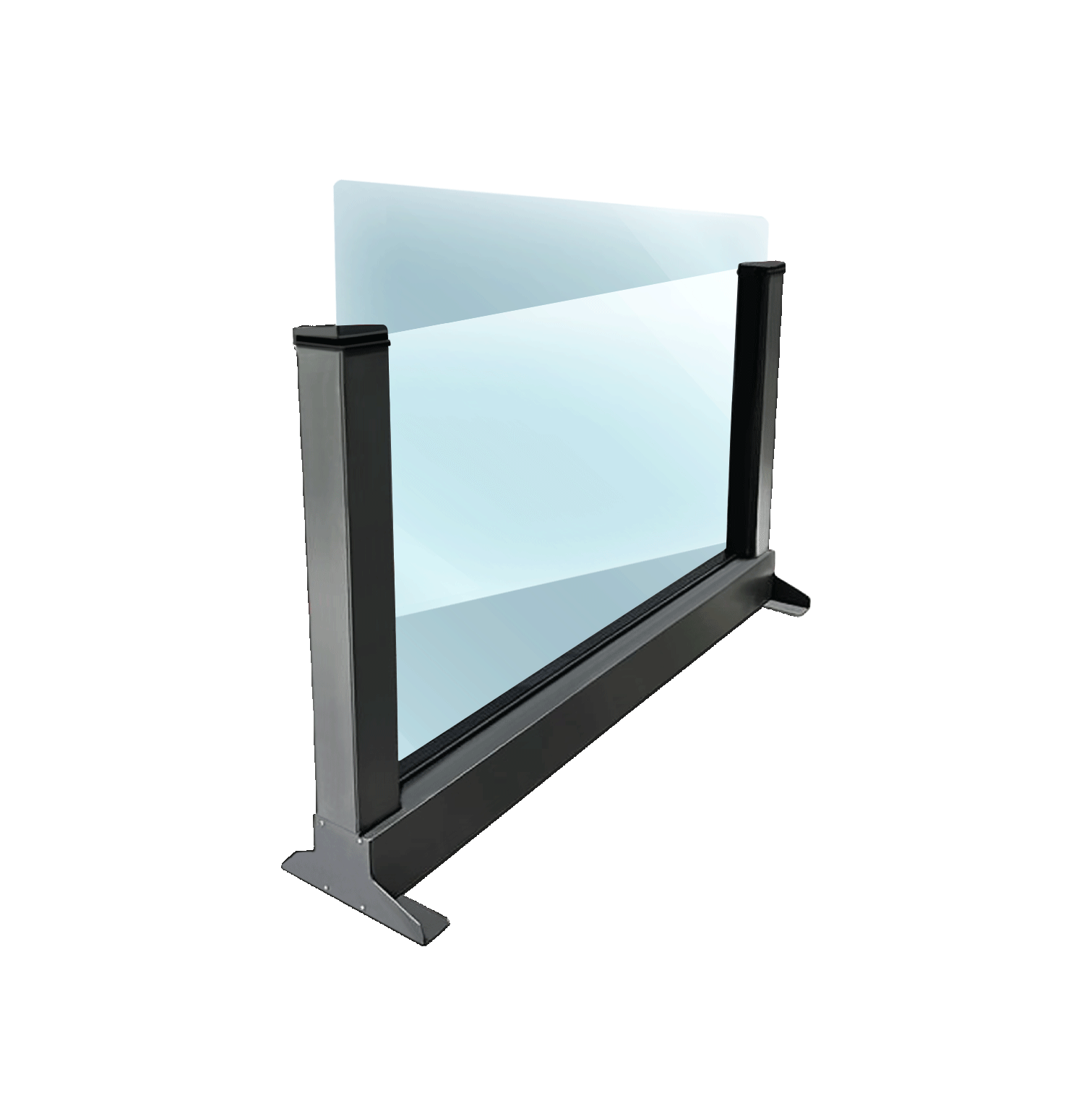

The Wind Breaker Glass System consists of two vertically moving glass panels. The lower panel is fixed, while the upper panel moves vertically. The height of the windbreak can be adjusted manually. It is made of aluminum profiles and includes laminated safety glass as part of the standard design. Manual, Hydraulic & Motorized Remote Control Windbreaker options are available.
Revitalize Your Spaces

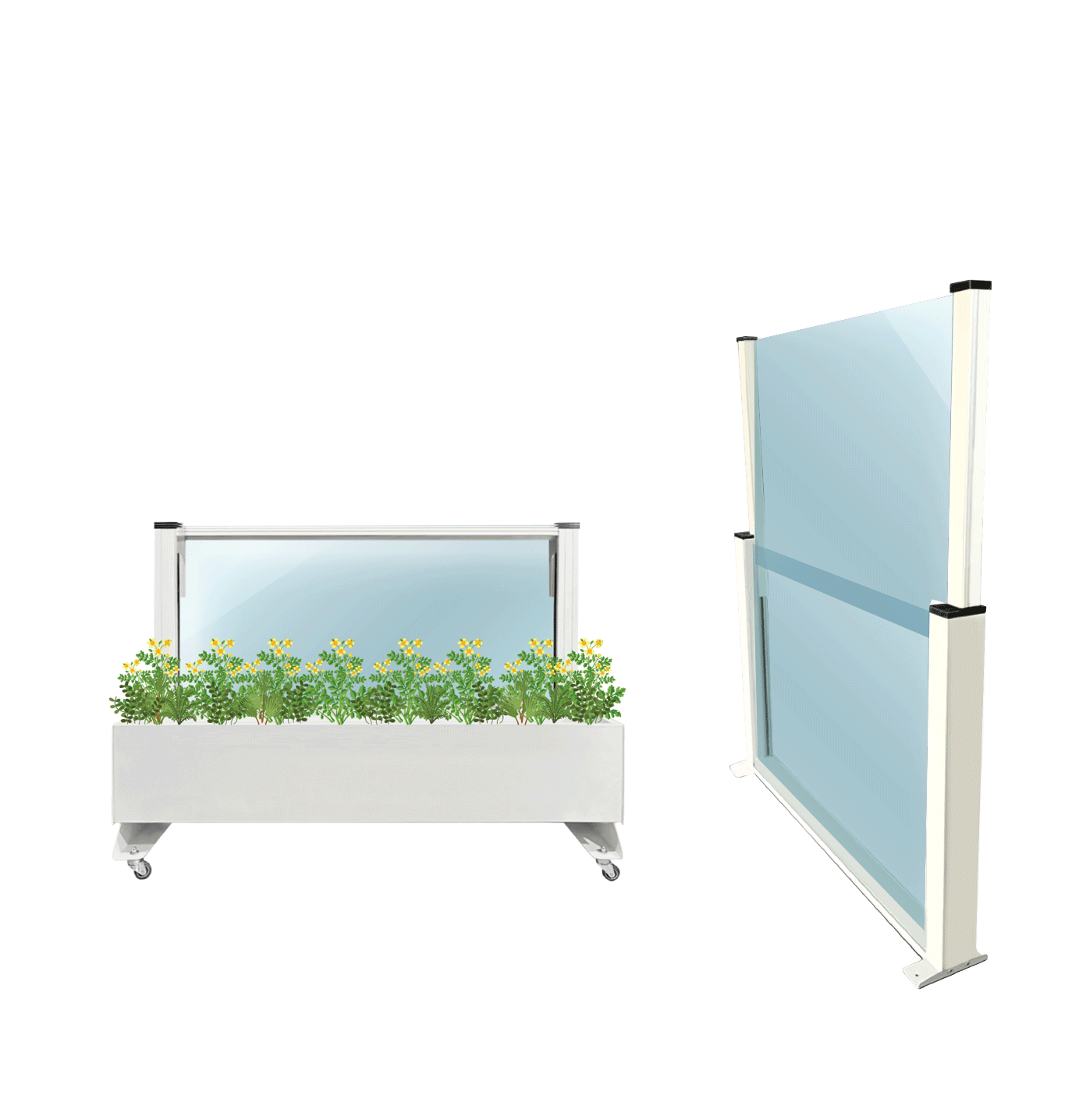

Additionally, with the option for flower boxes, you can personalize the decoration of your spaces and create a unique atmosphere. This allows you to transform your spaces according to your preferred style and visual preferences.
Protected Terraces
Your customers will be sheltered from the wind and enjoy a more comfortable space.
Adjustable Height
The top glass panel can move vertically to five different standard positions.
Custom Windbreaks
You can add your logo. In addition to protecting your terrace, you will also showcase your brand image.
Durable Glass
The movable part of the windbreak features 6 mm laminated glass, with a maximum width of 2200 mm per section.
Metric: 6 mm thickness, 2200 mm width
Imperial: 0.24 inches thickness, 86.6 inches width
Salt Corrosion Protection
Corner connectors and supports are made of steel resistant to salt corrosion.
Color Selection
Profile material is coated with electrostatic paint. RAL code selection or wood design is available. All RAL colors can be applied. Please contact us for available colors.
Manual System General Features
The system consists of two panels: one fixed and one movable.
The system operates using movable pulleys and steel cables.
Two wheels are used on the movable panel, and steel screws and nuts are used on the wheels.
All connection components used in the system are made of stainless steel.
For the system to function, two iron weight plates measuring 10x80 mm are used, hidden inside the weight profiles.
Metric: 10 mm x 80 mm
Imperial: 0.39 inches x 3.15 inches
The system dimensions are 2000 mm in width and 1760 mm in height.
Metric: 2000 mm (width) x 1760 mm (height)
Imperial: 78.74 inches (width) x 69.29 inches (height)
Profile Features:
Aluminum profiles are painted with electrostatic powder coating in the desired RAL color code.

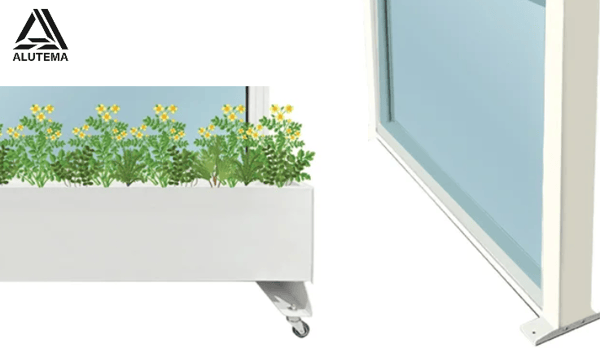

Planter Features:
The planter is 300 mm wide.
Metric: 300 mm
Imperial: 11.81 inches
It is made of galvanized folded sheet metal and painted with electrostatic powder coating in the desired RAL color code.
Glass Details:
6 mm thick tempered glass is used in the system.
Metric: 6 mm
Imperial: 0.24 inches
Salt Corrosion Protection:
Corner connectors and supports are made of steel resistant to salt corrosion.Color Selection:
Profile materials are coated with electrostatic paint. All RAL color options are available. Please contact us for available colors.

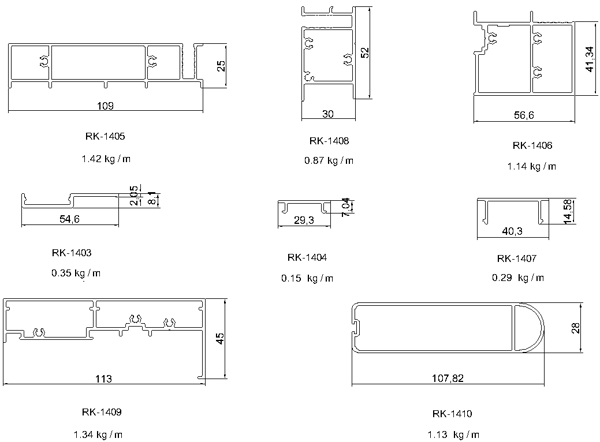

Metric and Imperial Units:
RK-1405
1.42 kg/m (0.96 lb/ft)
BASE BOTTOM FRAME PROFILE
RK-1408
0.87 kg/m (0.59 lb/ft)
BASE HORIZONTAL PROFILE
RK-1406
1.14 kg/m (0.77 lb/ft)
BASE VERTICAL PROFILE
RK-1403
0.35 kg/m (0.24 lb/ft)
BASE SLAT PROFILE
RK-1404
0.15 kg/m (0.10 lb/ft)
SLAT COVER PROFILE
RK-1407
0.29 kg/m (0.20 lb/ft)
BASE COVER PROFILE
RK-1409
1.34 kg/m (0.90 lb/ft)
FRAME UPRIGHT PROFILE
RK-1410
1.13 kg/m (0.76 lb/ft)
WEIGHT PROFILE
SYSTEM GENERAL FEATURES
A) System General Features
The system consists of two panels: one fixed and one movable.
Two gas pistons are used to operate the movable panel.
All connection components used in the system are made of stainless steel.
Optionally, a planter and wheels can be added.
B) Profile Features
Aluminum profiles are painted with electrostatic powder coating in the desired RAL color code.
C) Planter Features
The planter is 300 mm (11.81 inches) wide.
It is made of galvanized folded sheet metal and painted with electrostatic powder coating in the desired RAL color code.
D) Glass Details
5 mm (0.20 inches) thick tempered glass is used in the system.

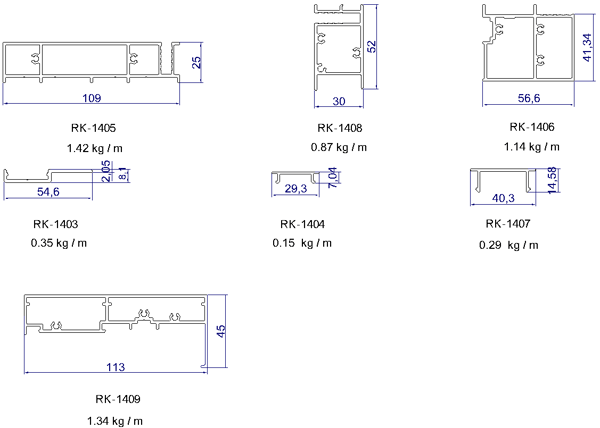

Metric and Imperial Units:
RK-1405
1.42 kg/m (0.96 lb/ft)
BASE BOTTOM FRAME PROFILE
54.6
RK-1403
0.35 kg/m (0.24 lb/ft)
BASE SLAT PROFILE
103
RK-1408
0.87 kg/m (0.59 lb/ft)
BASE HORIZONTAL PROFILE
29.3
RK-1404
0.15 kg/m (0.10 lb/ft)
SLAT COVER PROFILE
113
RK-1409
1.34 kg/m (0.90 lb/ft)
FRAME UPRIGHT PROFILE
56.6
RK-1406
1.14 kg/m (0.77 lb/ft)
BASE VERTICAL PROFILE
40.3
RK-1407
0.29 kg/m (0.20 lb/ft)
BASE COVER PROFILE
With Wind Deflector Glass Panels, you can comfortably use your spaces all year round, creating a comfortable and safe environment outdoors.
These panels provide protection against harsh winds and keep your tables and guests safe from rain on rainy days.
Comprehensive Warranty: Our products come with an extensive warranty, ensuring long-term durability and peace of mind.
Warranty - 10 years on the structure, 2 years on electrical parts (motors, sensors, etc)
Strict Quality Control: Each product undergoes rigorous testing and quality checks before shipment to ensure compliance with international standards.
