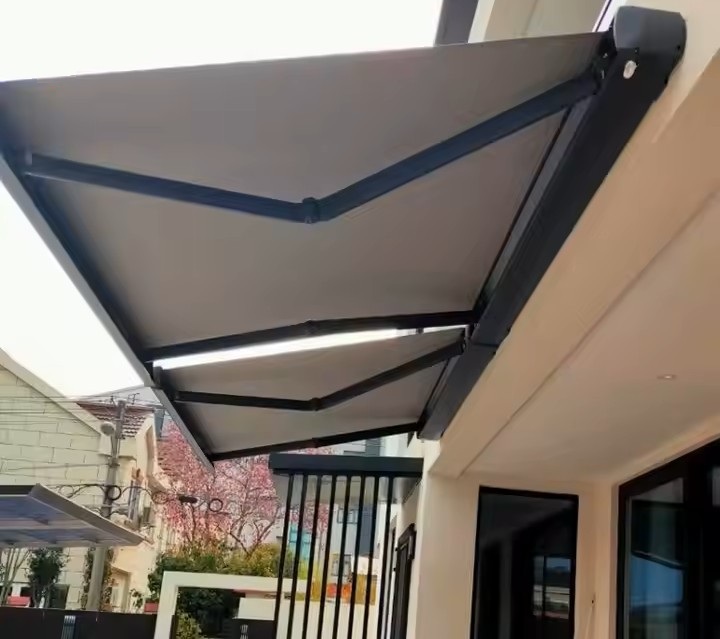

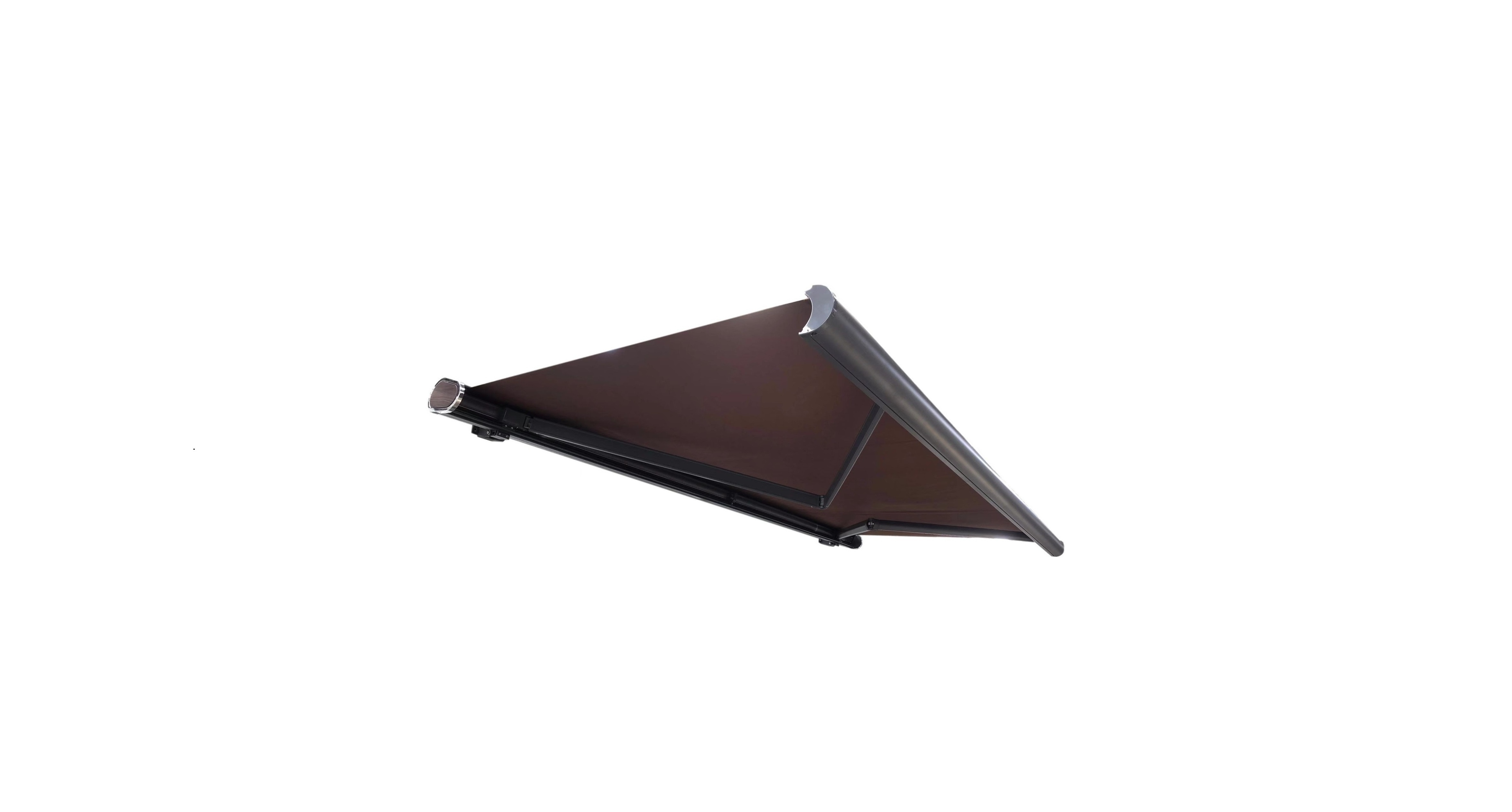

SunTema Plus 3.0 (Custom Size Production)
Premium Retractable Casette Awning
Description:
- SunTema Plus 3.0 full cassette awning can use for residential, Merchants, clubs, villas and other living scenes. Elegant curved appear-ance, one piece Design; Even at night, simple bright lights is still dazzling; The width size can be made 2-6 meters & projection 1.5-3.0 meters.

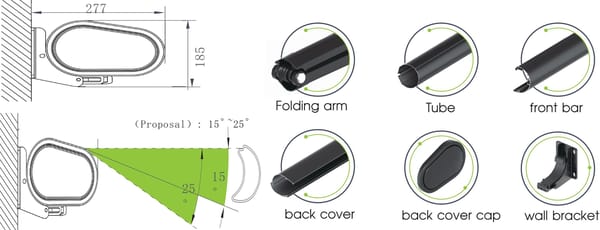

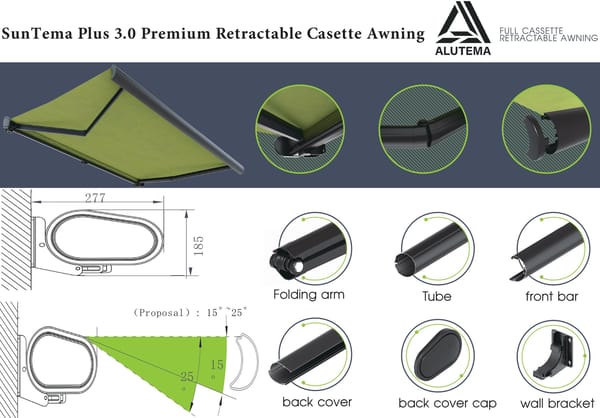

Component | Metric | Imperial |
|---|---|---|
Roller | Φ70 mm Steel | Φ2.76 inches Steel |
Front Bar | Aluminum 130.9 × 91.9 mm | Aluminum 5.15 × 3.62 inches |
Cassette | Aluminum 170.1 × 149.3 mm | Aluminum 6.70 × 5.88 inches |
Arm | 71.3 × 39.8 × 1.9 mm / 63.8 × 32.1 × 1.8 mm | 2.81 × 1.57 × 0.07 inches / 2.51 × 1.26 × 0.07 inches |
Gear Box | 1:11 | 1:11 |
Adjusted Angle | 15° to 25° | 15° to 25° |
Frame | Outdoor Powder Coated | Outdoor Powder Coated |
Connector | Aluminum Die Cast | Aluminum Die Cast |
Max Size per Unit | Width: 6.0 m, Projection: 3.0 m | Width: 19.69 ft, Projection: 9.84 ft |
Arms Available | 1.5 m, 2.0 m, 2.5 m, 3.0 m | 4.92 ft, 6.56 ft, 8.20 ft, 9.84 ft |
.png)
Basic Features
Sail Material: Acrylic
Frame Material: Aluminum
Operation Method: Remote control switch
Feature: Anti-UV
Other Attributes
Type: Awnings
Frame: Powder Coated
Product Name: SunTema Plus 3.0 Premium Retractable Awning
Roller: dia 70 mm Steel
Metric: 70 mm
Imperial: 2.76 in
Front Bar: Aluminum 130.9 x 91.9 mm
Metric: 130.9 x 91.9 mm
Imperial: 5.15 x 3.62 in
Arm Profile Size: Aluminum 71.3 x 39.8 x 1.9 mm / 63.8 x 32.1 x 1.8 mm
Metric: 71.3 x 39.8 x 1.9 mm / 63.8 x 32.1 x 1.8 mm
Imperial: 2.81 x 1.57 x 0.07 in / 2.51 x 1.26 x 0.07 in
Gear Box: 1:11
Adjusted Angle: 15° to 25°
Frame: Outdoor Powder Coated
Frame Color: Customized color
Max Size: 6 m (Width) x 3 m (Projection)
Metric: 6 m x 3 m
Imperial: 19.69 ft x 9.84 ft
Arms Available: 1.5 m, 2.0 m, 2.5 m, 3.0 m
Metric: 1.5 m, 2.0 m, 2.5 m, 3.0 m
Imperial: 4.92 ft, 6.56 ft, 8.20 ft, 9.84 ft
Packaging and Delivery
Sales Units: Single item
Package Size: 300 x 35 x 35 cm
Metric: 300 cm x 35 cm x 35 cm
Imperial: 118.11 in x 13.78 in x 13.78 in
Gross Weight:
Metric: 68 kg
Imperial: 149.91 lbs
.png)
Comprehensive Warranty: Our products come with an extensive warranty, ensuring long-term durability and peace of mind.
Warranty - 10 years on the structure, 5 years don't fade Acrylic Fabric, 2 years on electrical parts (motors, LED Lighting, etc)
Additional payment is required for Extended Warranty
Strict Quality Control: Each product undergoes rigorous testing and quality checks before shipment to ensure compliance with international standards.
